Fire Alarm System

Fire Alarm System (FAS) is available in two different versions:
Addressable and Conventional fire alarm systems.

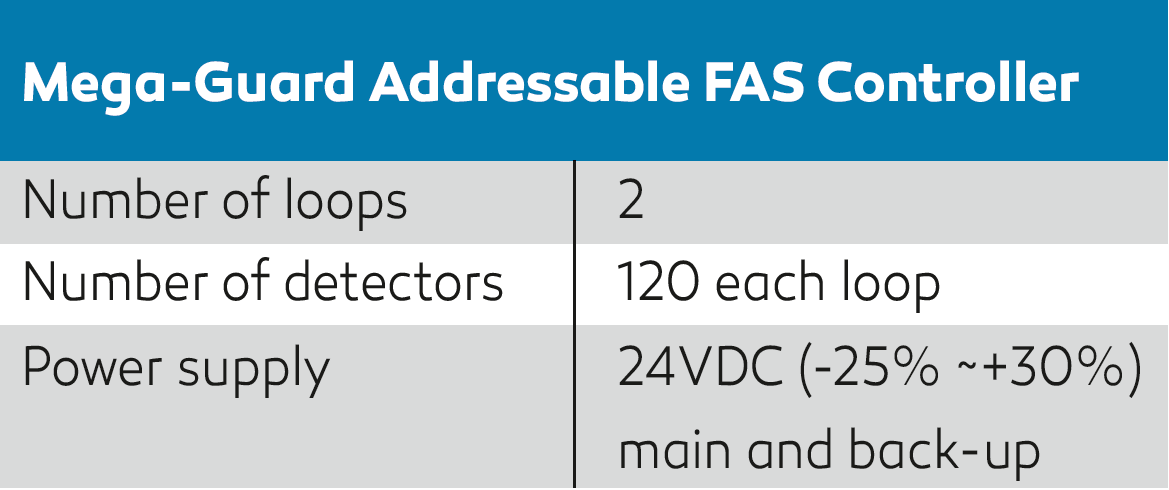

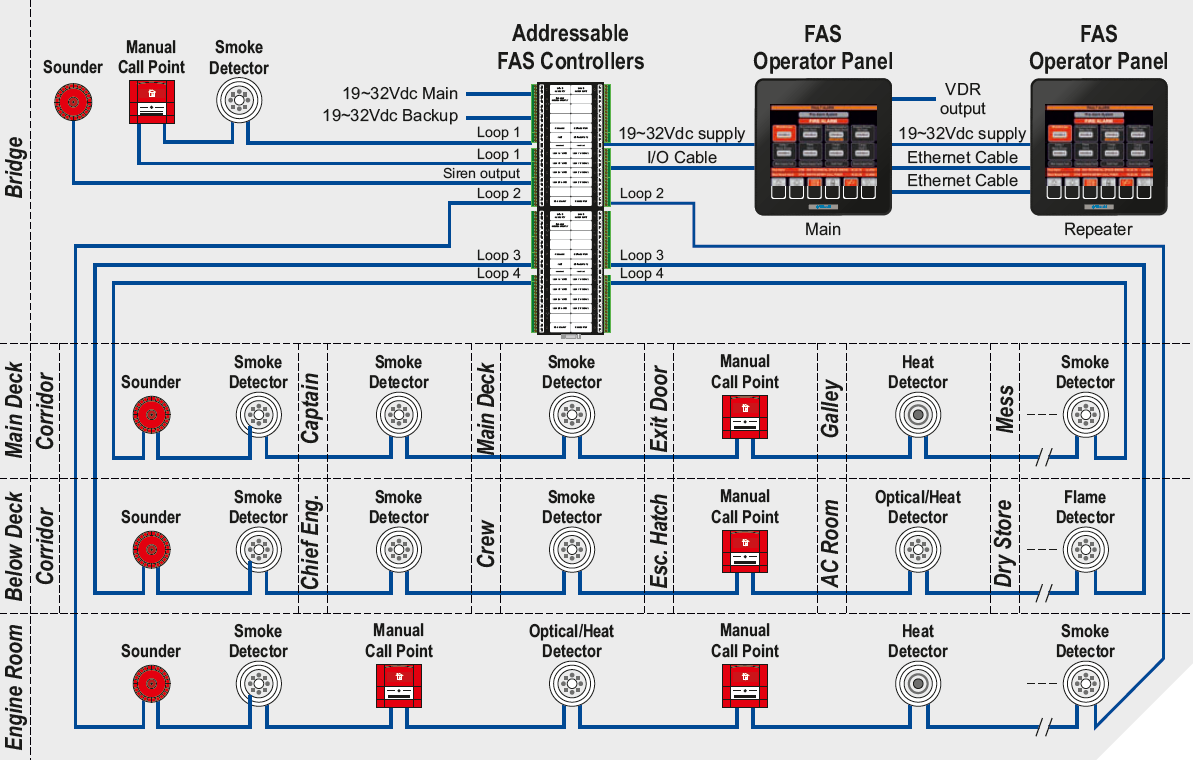

The addressable FAS monitors up to 8 different loops on the ship in compliance with EN54-2 and type approved by classification societies. A single loop supports up to 120 addressable fire detectors divided in up to 16 zones. The addressable FAS supports a maximum of 480 fire detectors.

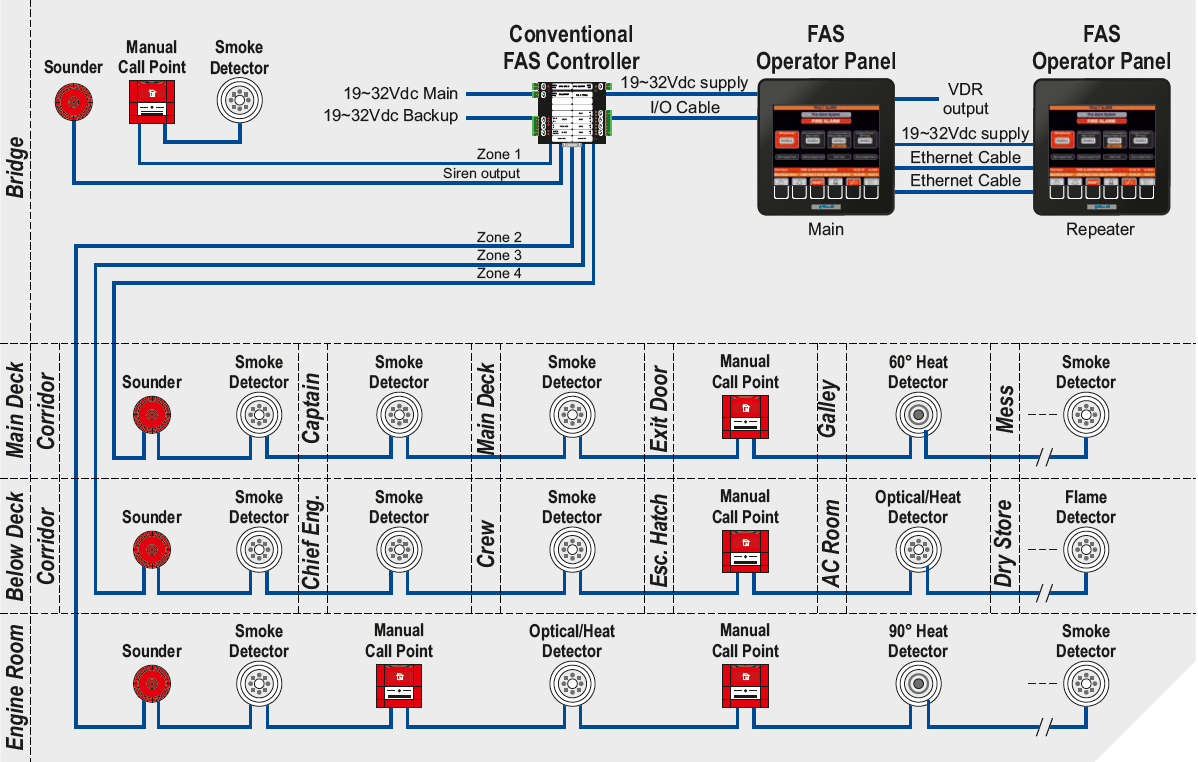

The conventional FAS monitors up to 4 different zones on the ship in compliance with EN54-2 and type approved by classification societies. A single zone supports up to 32 conventional fire detectors.
The conventional FAS supports a maximum of 128 fire detectors.
